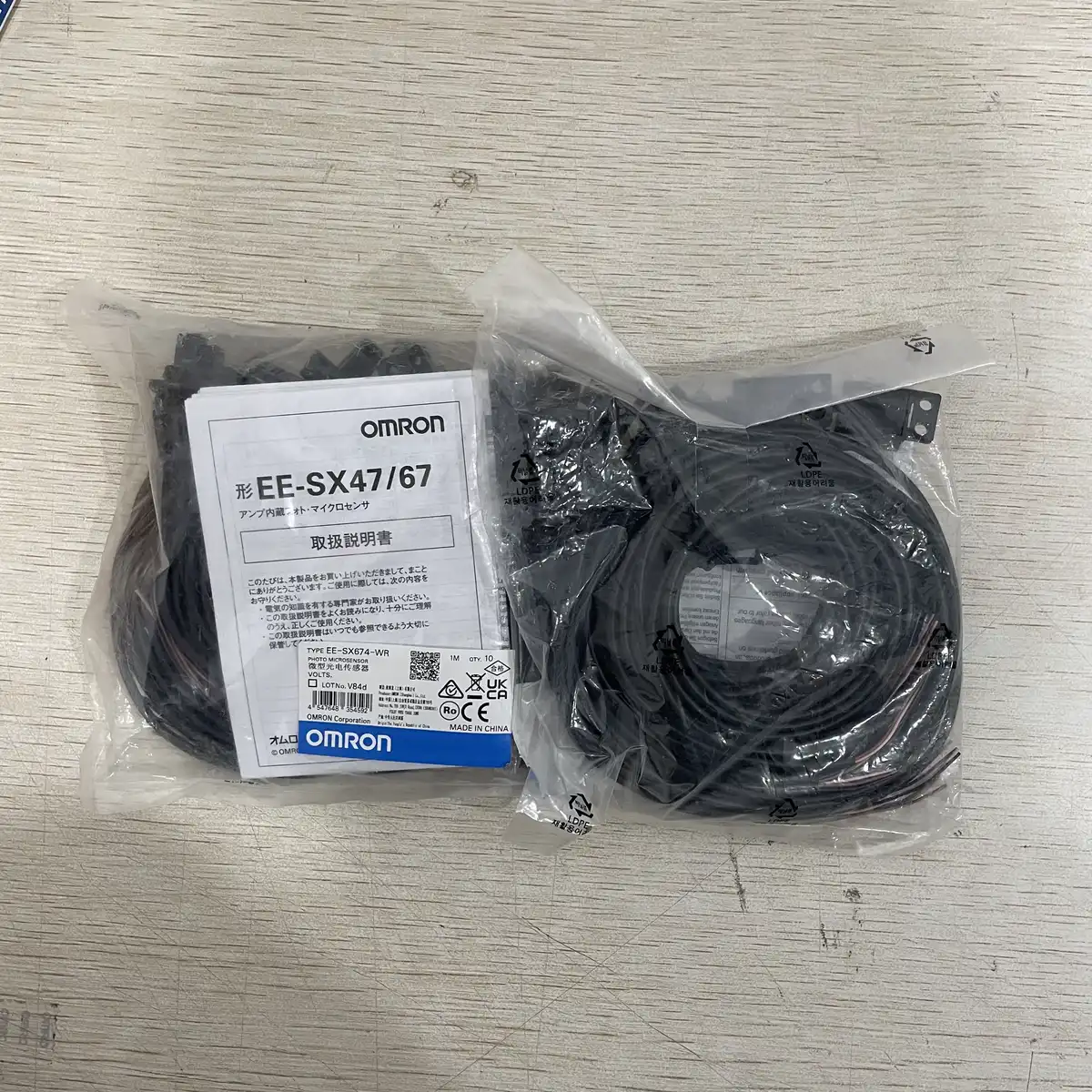

Omron EE-SX674-WR 1M Slot-Type Photomicrosensor | 5 mm Through-Beam, Compact Detection
SKU: EE-SX674-WR 1MCompact Omron EE-SX674-WR 1M slot-type photomicrosensor with 5 mm through-beam detection, Dark-ON/Light-ON modes, and pre-wired 1m cable—ideal for high-speed, space-constrained industrial applications.
Key Features
- Compact grooved slot-type design optimized for close-mounting installations
- Selectable Dark-ON / Light-ON modes for flexible system configuration
- Reliable 5 mm through-beam sensing for precise detection of small opaque objects
- High-speed response frequency (1 kHz min., 3 kHz avg) for fast automation processes
- Pre-wired 1 m cable for easy, quick installation in tight machine layouts
- Stable infrared LED (940 nm) light source with visible operation indicator
- Ideal for robotics, packaging machines, indexing systems, and precision detection tasks
High-Precision Slot-Type Photomicrosensor for Compact Industrial Detection
The Omron EE-SX674-WR 1M is a compact, high-performance slot-type photomicrosensor engineered for accurate object detection in tightly spaced industrial automation environments. With its grooved, close-mounting design and 5 mm through-beam sensing slot, this sensor delivers reliable detection of small opaque targets, down to 2 × 0.8 mm, making it ideal for precision machinery, indexing mechanisms, robotics, packaging equipment, and parts-feeding systems. Featuring selectable Dark-ON and Light-ON operation, the EE-SX674-WR 1M offers flexible integration into different control circuits and PLC logic structures. Its NPN open collector output supports straightforward interfacing with standard industrial controllers. The built-in infrared LED (940 nm) provides stable optical performance, while an onboard light indicator visually confirms sensor operation and status, simplifying troubleshooting and setup. The pre-wired 1-meter cable design allows fast installation even in constrained machine layouts. With a high-speed response frequency of up to 3 kHz, this photomicrosensor excels in high-throughput applications requiring fast, consistent detection. The durable IP50-rated housing ensures dependable performance in clean industrial environments, making it a versatile and cost-effective sensing solution for automated systems.
Technical Specifications
| Sensing Method | Through-beam type |
|---|---|
| Sensing Distance | Slot width: 5 mm |
| Standard Sensing Object | Opaque, 2 x 0.8 mm min. |
| Light Source | Infrared LED (940 nm) |
| Power Supply Voltage | 5 to 24 VDC ±10% |
| Output Type | NPN open collector output |
| Load Current | 100 mA max. |
| Response Frequency | 1 kHz min., Average: 3 kHz |
| Ambient Temperature | Operating: -25 to 55℃, Storage: -30 to 80℃ |
| Connection Method | Pre-wired models, 1m cable |
| Degree of Protection | IP50 |
